    FD-V166 6-AXIS ROBOTS For Spot Welding and handing of heavy loads and handing of heavy loads Current: 85-100A

    Ask Lasest Price
    Brand Name : Kehui Technology
    Model Number : FD-V166
    Certification : ISO9001, CE, CU-TR
    Payment Terms : L/C, T/T, Western Union, MoneyGramSupply
    Supply Ability : 20 sets per year
    Delivery Time : 180 days after payment
    • Product Details
    • Company Profile

    FD-V166 6-AXIS ROBOTS For Spot Welding and handing of heavy loads and handing of heavy loads Current: 85-100A

    The FD Robot series for production and handling applications offers several advantages: They fulfill their functions at high speed and accuracy.They are suitable for grinding and milling. Also applications like palletizing and spraying are possible. The t

    Application:

    The Fd-V166 6-axis, long-reach robot is used for arc welding, laser hybrid welding, thermal spraying, spot welding, gluing, or handing.
    1.Allows for high productivity-While shortening the cycle time, it still allows for high productivity.
    2.Reduces equipment costs-The shorter lines of high density installations can reduce equipment costs.
    3.Reduced maintenance manipulator design-Frequency and magnitude of maintenance tasks have been reduced through smart manipulator design.
    4.Efficiency-Higher efficiency by handling heavy loads.
    5.Avoiding collisions-Interference detection sensitivity improved.
    6.Built-in cable storage-Optimally protected, neat cable layout preventing the cable from getting caught during robot operation.
    7.Maintenance-friendly-Cable routing easily accessible.
    During the welding procedure, welding wire keeps loading automatically and CO2 gas gets sprayed to the welding part continuously.
    ModelFD-166V
    Number of Axes6
    Maximum Capacity166kg
    Positional Repeat-ability±0.01mm
    Driving Capacity18000W

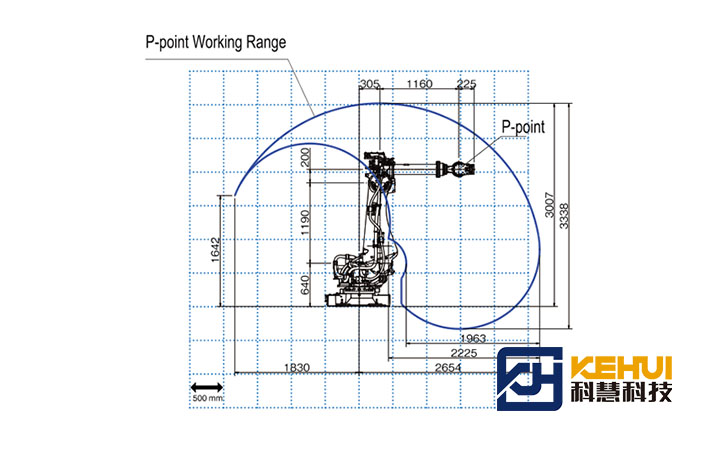

    Working RangesArmJ1(Rotation)±180°
    J2(Lower arm)﹣80°~﹢60°
    J3(Upper arm)﹣146.5°~﹢150°
    WristJ4(Swing)±360°
    J5(Bending)±135°
    J6(Twist)±360°
    Wrist Allowable LoadAllowable MomentJ4(Swing)951N·m
    J5(Bending)951N·m
    J6(Twist)490N·m
    Allowable Moment
    Of Inertia
    J4(Swing)88.9kg·m²
    J5(Bending)88.9kg·m²
    J6(Twist)45kg·m²
    Maximum SpeedArmJ1(Rotation)2.18rad/s{125°/s}
    J2(Lower arm)2.01rad/s{115°/s}
    J3(Upper arm)2.11rad/s{121°/s}
    WristJ4(Swing)3.14rad/s{180°/s}
    J5(Bending)3.02rad/s{173°/s}
    J6(Twist)4.54rad/s{260°/s}
    Arm Cross Sectional Area6.58m²x360°
    Environmental Conditions0~45℃,20~80%RH(No condensation)
    Mass (weight)1010kg
    Maximum Load of Upper Arm45kg(90 kg max)
    Installation MethodFloor-mounted
    Paint ColorWhite
