Brief Introduction
The furniture automatic welding production line realizes the
intelligent production line from automatic raw material loading and
unloading, intelligent logistics, automatic welding and finished
product cutting.
With high equipment utilization, low labor intensity, high work
efficiency, low repair rate, high degree of automation and
information management, high practicability and aesthetics, clean
and environmental protection and many other excellent features.
Mature technology, rich cases, can be personalized, customized
according to customer process requirements, using intelligent
industrial control technology, modular system process design,
refined process management system and flexible chemical fixture
design, any combination, flexible.
Product Advantage

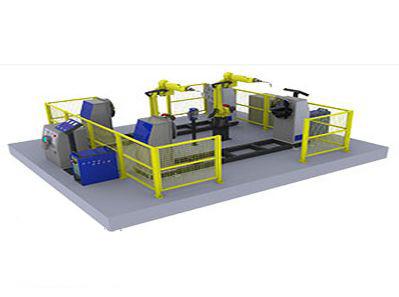

1. Handling welding double station
The two-station cooperative configuration of the handling robot +
welding robot enables the handling and welding without affecting
each other, saving time and improving efficiency;
2. Using imported servo motor
It adopts high-power servo motor and precision reducer to directly
connect design, high torque, high kinetic energy, smooth operation
and high efficiency. The handling and welding robots are stable and
reliable at high speed, and the positioning is accurate;
3. Equipped with a safe production system
The safety production system mainly includes: over-travel
protection, emergency stop protection, limit limit, air pressure
alarm, safety shield, door opening and power-off, electrical
protection and other functions to ensure the personal safety of
operators and ensure the safe production of furniture welding;
4. Operating system, easy to learn
The operating system teaches programming, can realize arbitrary
programming, is easy to learn, and easy to operate;
Core Technology
1. Automatic feeding system
The automatic feeding system can realize the material feeding of
the sheet, the automatic bending of the sheet, and the automatic
cutting of the sheet. The cutting precision is high and the cutting
efficiency is high.
2. Flexible automatic welding system
Fully automated welding with dual-station dual robots. The robot
has high utilization efficiency, low labor intensity, high welding
efficiency and good quality, and the product has a low defect rate.
3. Safety and environmental protection system
The safety system includes the overall safety protection of the
production line and equipment safety protection; the environmental
protection system includes robotic welding fully enclosed and
equipped with corresponding exhaust and dust removal systems.
Active safety protection of production line equipment, fully
enclosed welding of welding rooms, smoke purification system, and
realization of smoke-free workshops.
4. Automated logistics system
The workshop logistics system uses AGV transportation to save
labor. The system as a whole controls material distribution in a
timely and reasonable manner, and the AGV trolley intelligent
collision avoidance system is safe and reliable.
5. Visual production management system
Timely and efficient feedback of production activity information,
realize information flow and logistics interaction management, lean
production, efficient management, electronic method, flexible
layout, content can be changed at any time, fully applicable to
production management in all walks of life.
5. Double air path system
Double air path system include:
A compressed air system and a carbon dioxide supply system are
used. Achieving a concentrated supply of carbon dioxide is about
20% less than a bottled gas, and a centralized supply can save a
lot of labor hours.
7. The entire line of automation control system
The whole line control system is divided into the total control
system, the equipment sub-control system, and the AGV control
system. The equipment sub-control system and the AGV control system
are controlled by the overall control system. Greatly improve the
efficiency of the production line and the utilization rate of all
equipment; the overall control of the line body, random
combination, flexible and changeable; realize the information
management of the production line.
Technical parameter
| Positional Repeatability | 0.08mm |
| Drive Capacity | 2600w |
| Rated Duty Cycle | 60% |
| Rated Voltage | 380V |
| Welding Station | Economical, divided into automatic flip and fixed welding |
| Workpiece Dimension | Can be customized according to the actual needs of customers |
| Single station workpiece weight limit | 500kg |
| Maximum carrying weight | Can be customized according to the actual needs of customers |
Product Structure
